Gas Soldering Iron
Gas Soldering Iron
Weller Pyropens provide temperature variable soldering without the need for an electrical supply. Pyropens are lightweight and user friendly. A choice from 5 versions with a wide
range of tips and nozzles makes them an ideal tool for maintenance and field service jobs in out of the way places.
Powered by Butane gas, Pyropens offer soldering iron, hot gas blow and blowtorch options. They have a short heat up time and are refuelled in seconds from a refill cylinder.
A sight glass shows the level of gas in the reservoir. Heat is generated by gas passing over a catalyst in the soldering tip or the hot air nozzle. Temperature variation is obtained by increasing respectively decreasing the gas flow.
Weller WP60K Pyropen Gas Soldering Iron Kit
An ergonomic Butane gas operated soldering iron with solder, hot blow and blow torch functions. Offers maximum flexibility for use in many applications. It is temperature variable within the range of 500°C to 1300°C dependant upon the function used. Refilling takes only a few seconds and it operates approx. 1 hour with one filling. An integral sight glass shows the level of the gas in the tank. Ignition of the gas requires an external source and the long life tips deliver rapid heat up. The hot blow nozzle supplies inert hot gas to prevent oxidation of non contact solder joints and is therefore suitable for use in solder paste applications, heat shrink and on vinyl chloride boards.
Cordless Pyropen Gas Soldering Iron without gas
Weller Pyropens provide temperature variable soldering without the need for an electrical supply. Pyropens are lightweight and user friendly. A choice from 5 versions with a wide range of tips and nozzles makes them an ideal tool for maintenance and field service jobs in out of the way places.
Powered by Butane gas, Pyropens offer soldering iron, hot gas blow and blowtorch options. They have a short heat up time and are refuelled in seconds from a refill cylinder almost available in every local supermarket. A sight glass shows the level of gas in the reservoir. Heat is generated by gas passing over a catalyst in the soldering tip or the hot air nozzle. Temperature variation is obtained by increasing respectively decreasing the gas flow.
Mobile Soldering
For small mobile soldering application
Cost effective
Easy to recharge via butane gas

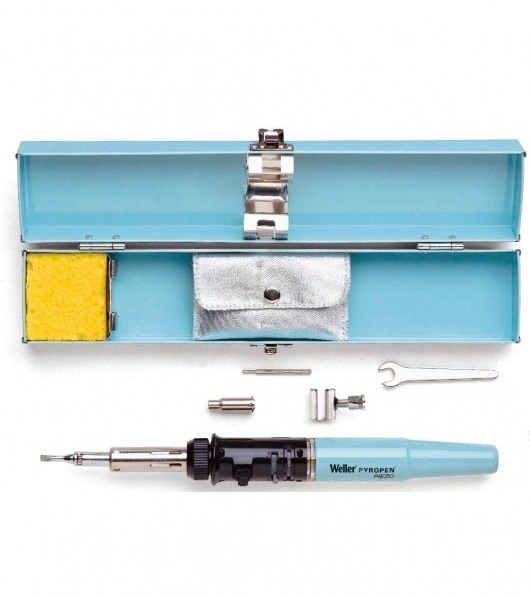

Weller PYROPEN PIEZO Without Gas
Weller Pyropens provide temperature variable soldering without the need for an electrical supply. Pyropens are lightweight and user friendly. A choice from 5 versions with a wide range of tips and nozzles makes them an ideal tool for maintenance and field service jobs in out of the way places.
Powered by Butane gas, Pyropens offer soldering iron, hot gas blow and blowtorch options. They have a short heat up time and are refuelled in seconds from a refill cylinder almost available in every local supermarket. A sight glass shows the level of gas in the reservoir. Heat is generated by gas passing over a catalyst in the soldering tip or the hot air nozzle. Temperature variation is obtained by increasing respectively decreasing the gas flow.
Compared to electrical power :20 W – 80 W
Temperature range :250°C – 500°C (482°F – 932°F)
Temperature range °F : 482 – 932
Temperature range °C :250 – 500
Weller PYROPEN JUNIOR (ELECTRONIC)
Manual ignited lightweight Butane gas operated soldering iron with solder, hot blow and blow torch functions. Supplied with aluminium protective cap with pocket clip and safety feature to prevent the cap being fitted when the iron is on. Temperature variable between 400°C to 500°C when used as a soldering iron, up to 650°C when used as a hot air blower and 1300°C when used as a blow torch.
Gas Soldering Iron tips, hot blow nozzles and accessories

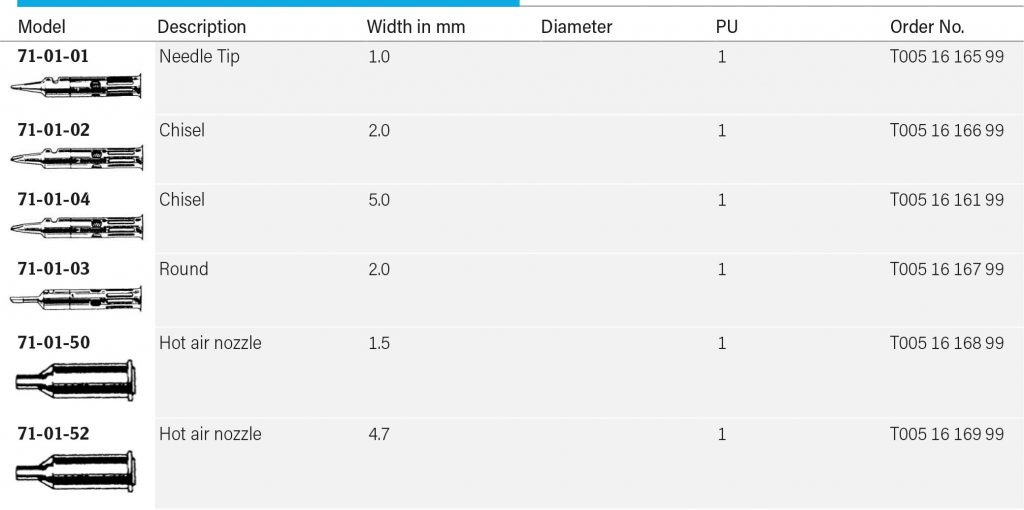

Soldering Tips for Pyropen Jr

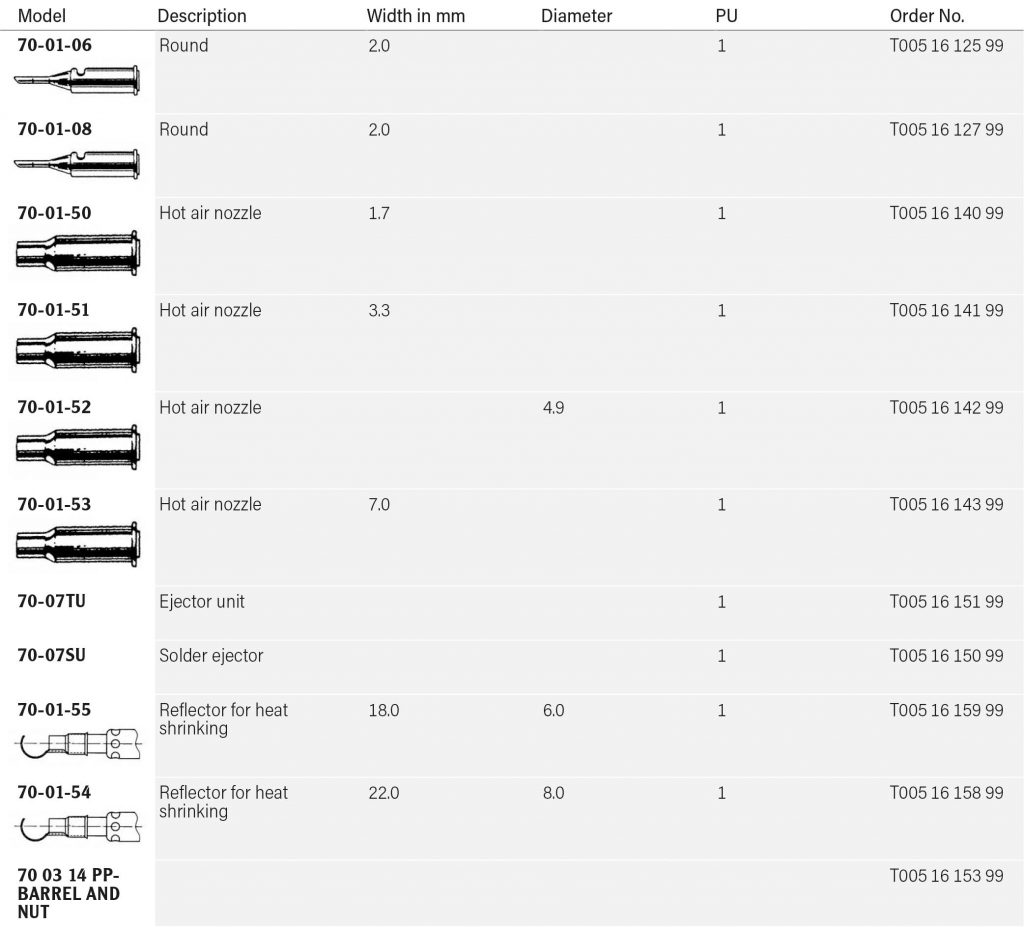

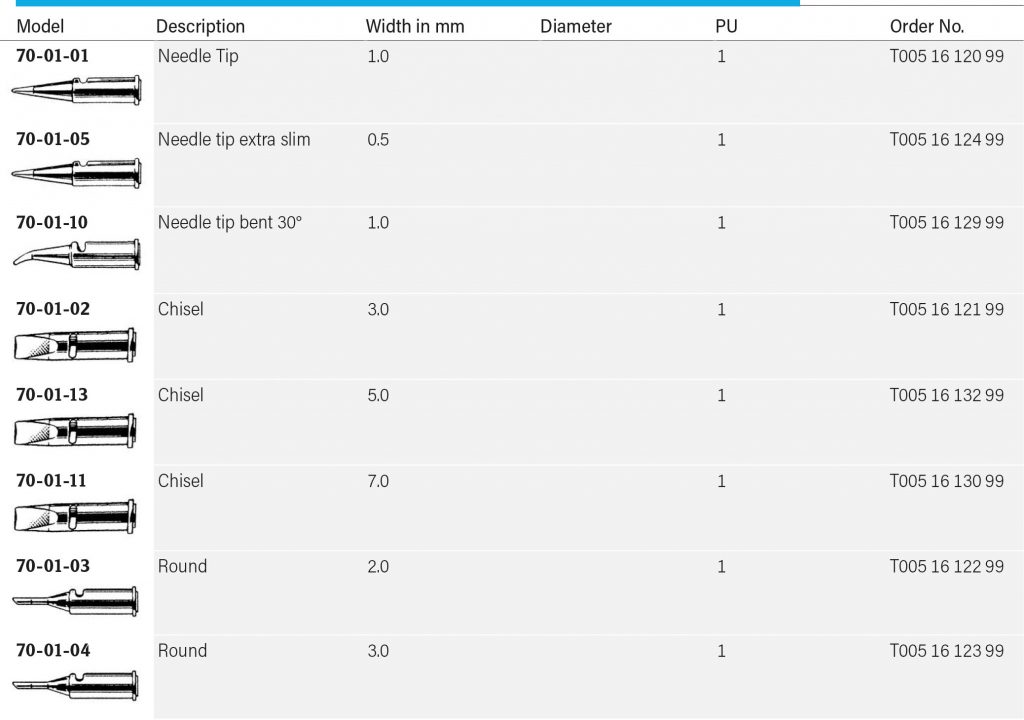

Soldering Tips for Pyropen and Pyropen Piezo
