A pick and place machine is a robotic assembly device that is used for PCB assembly. As the name indicates it picks components up and places them onto the printed circuit board.
Pick and place machines are a key element of any PCB assembly line enabling components to be automatically placed on a printed circuit board quickly and accurately.
The pick and place machine has a head on an arm which can reach all the reels, tubes, etc., picks them up and then places them on the board. Typically the head uses a small vacuum to pick the components up and then release them on the board.
The head is very accurately controlled by the software which ensure accurate positioning of the board as well as optical location, so everything is placed exactly in the right position.
Accurate positioning has great importance because some components are very small, and also track widths are very narrow.
The pick and place machines are pre-programmed with the information about component positions so that they know where to place the components. This program is normally developed directly from the printed circuit board design information.
Wida provides the best pick and place from the most technologically advanced brands which some brief features of them are as below:
Essemtec | Fuji | Mechatronic Systems |
-Most feeders per sqm in the market place
-Highest speed placing and dispensing on single pass-through -No vibration, symmetrical mineral casting -Non-stop production, intelligent smart feeder |
-Industry’s most innovative assembly solutions
-Highly productive and multi-functional modular -Supports the smallest parts being used in mass production -Linear motor movement and high resolution cameras |
-Wide range of bench top and cabinet models
-Manual and automatic Suitable for small and medium volume production with remote service via internet -Qualified for all types of components |
Showing 1–12 of 16 results
-
Pick & Place Machines

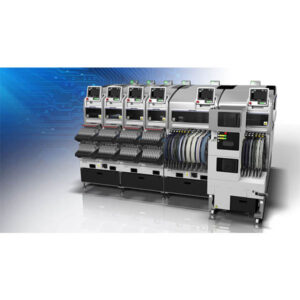

AIMEX III Flexible Placing Machine
-
Pick & Place Machines
FUJI NXT-R SMT Machine
-
Pick & Place Machines
Manual pick & place system M1
-
Pick & Place Machines
NXT III Scalable Placement Platforms
-
Pick & Place Machines
NXT-H Hybrid Placing Machine
-
Pick & Place Machines
P1-Automatic SMT Pick & Place with optical alignment system
-
Pick & Place Machines
P10 – SMT Pick & Place with optical system and precision dispensing head
-
Pick & Place Machines
P20- SMT Pick & Place machine with optical alignment system
-
Pick & Place Machines
P30- SMT Pick & Place machine with dispensing head
-
Pick & Place Machines
P40- SMT Automated Pick & Place
-
Pick & Place Machines
P50-Automated Pick & Place with dispensing head
-
Pick & Place Machines
PUMA Relentless Pick & Place & Dispensing Machine
