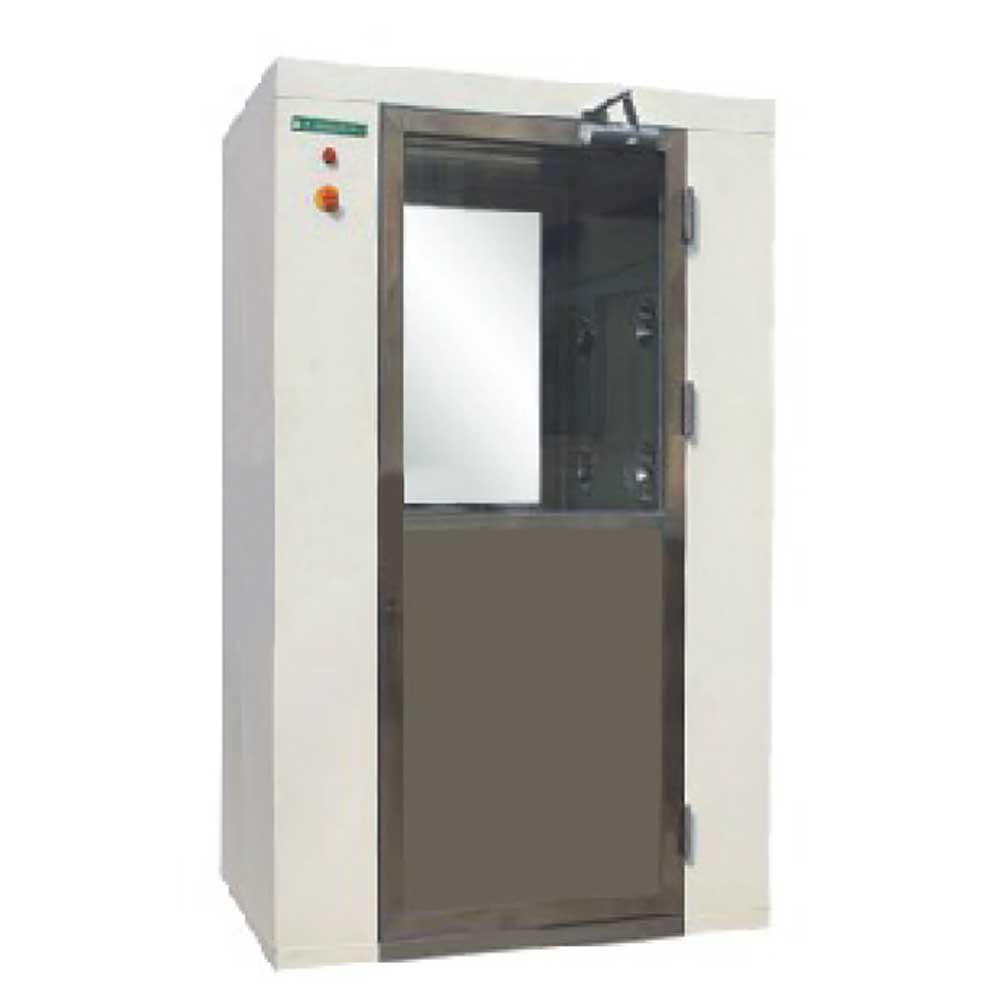

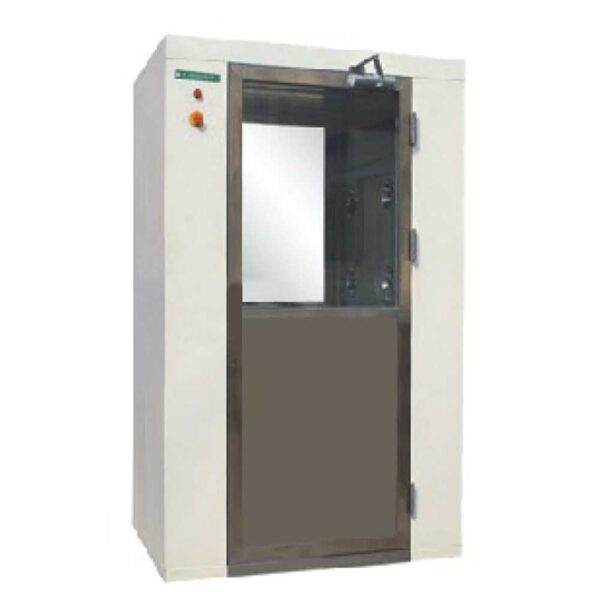

MAS-800 automatic mist shower uses SUS304 steel plate, equipped with centrifugal fans, mist nozzles,
bag-in-bag-out filter system, and assembled HEPA filter mist/air blowing & filtration system.
It is characterized by well formed&compact structure, easy maintenance, simple operation, etc. This machineadopts PLC controlled infrared probe, automatic mist spray/air blow and electric interlock.
When an operator open the entrance door manually, the exit door will close at the same time and the light turns on, then the operator enters into the air shower room and closes the entrance door. When the photoelectric sensor senses the operator, the mist shower starts to spray mist(mist shower time adjustable). When the mist shower ends the air shower begins(air shower time adjustable). When the air shower ends, the exit door automatically unlock, then the operator can open the exit door and leave the air shower room.
- Filtration efficiency: >=99.99% 0.5@μm (sodium flame method)
- Air shower time: 1~99 seconds adjustable (default 20s)
- Mist shower time: 1~99 seconds adjustable(default 20s)
- Mist particle size: 10~50um
- Spray nozzle air speed: ≥20m/s
- Mist shower nozzle no.: 6
- Air shower nozzle no.: 6
- Overall dimensions: 1150W×1000D×2100H
- Air shower area: 800W×900D×1950H
- Power: 3N 380V 50Hz
- Max power consumption: 1KW
- HEPA filter size: 610×610×70×1pc
- BIBO: 650*650*1000MM
