- Material: Stainless steel SUS304
- Door Control Method: Mechanical/electronic interlock, stable and durable
- High-pressure centrifugal fan specialized for purification is installed on the top of pass box.
- Supply/return air system with stainless steel air shower nozzles on the top, 0.45-0.65m/s of air velocity.
- Tertiary filtration with pre-filter, medium filter, and non-clapboard HEPA filter.
- Efficiency: H14, ≥ 99.995% @ 0.3 micron particles.
- Air supply on the top and air return on the bottom, cleaning off dust and dirt particles from material transfer.
- It enables materials to be moved between the clean room and other parts without damaging the cleanliness level of the products or materials, and also protect the surrounding area clean.
- Soft switch control of UV lamp, fan, power, door open, and setting.
- Perspective windows on both sides of door, excellent surface flatness and smoothness without welding spot.
- Power supply: 220V/50Hz;
- Whole Power: 0.35KW
- Arc shaped inner bottom which is to avoid forming dust, ensures the beautifulness and easy maintenance.

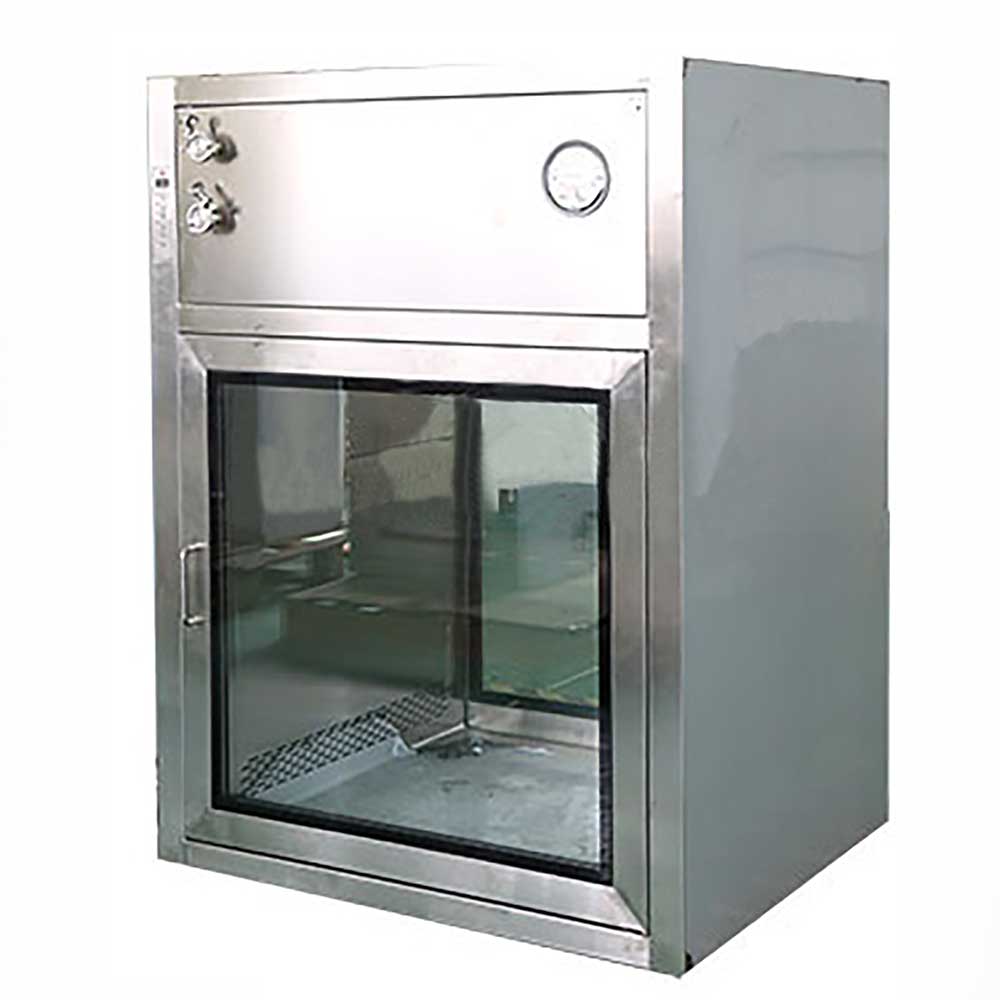

- This air shower pass box contains one differential pressure gauge.
| TYPE | OUTSIDE DIMENSION W x D x H (MM) |
INSIDE DIMENSION W x D x H (MM) |
REMARK |
| 1 | 500 x 380 x 860 | 300 x 300 x 300 | Electronic Interlocking and Full Stainless Steel |
| 2 | 600 x 480 x 960 | 400 x 400 x 400 | |
| 3 | 700 x 580 x 1060 | 500 x 500 x 500 | |
| 4 | 800 x 680 x 1160 | 600 x 600 x 600 | |
| 5 | 800 x 680 x 1260 | 700 x 700 x 700 | |
| 6 | 1000 x 880 x 1360 | 800 x 800 x 800 |
