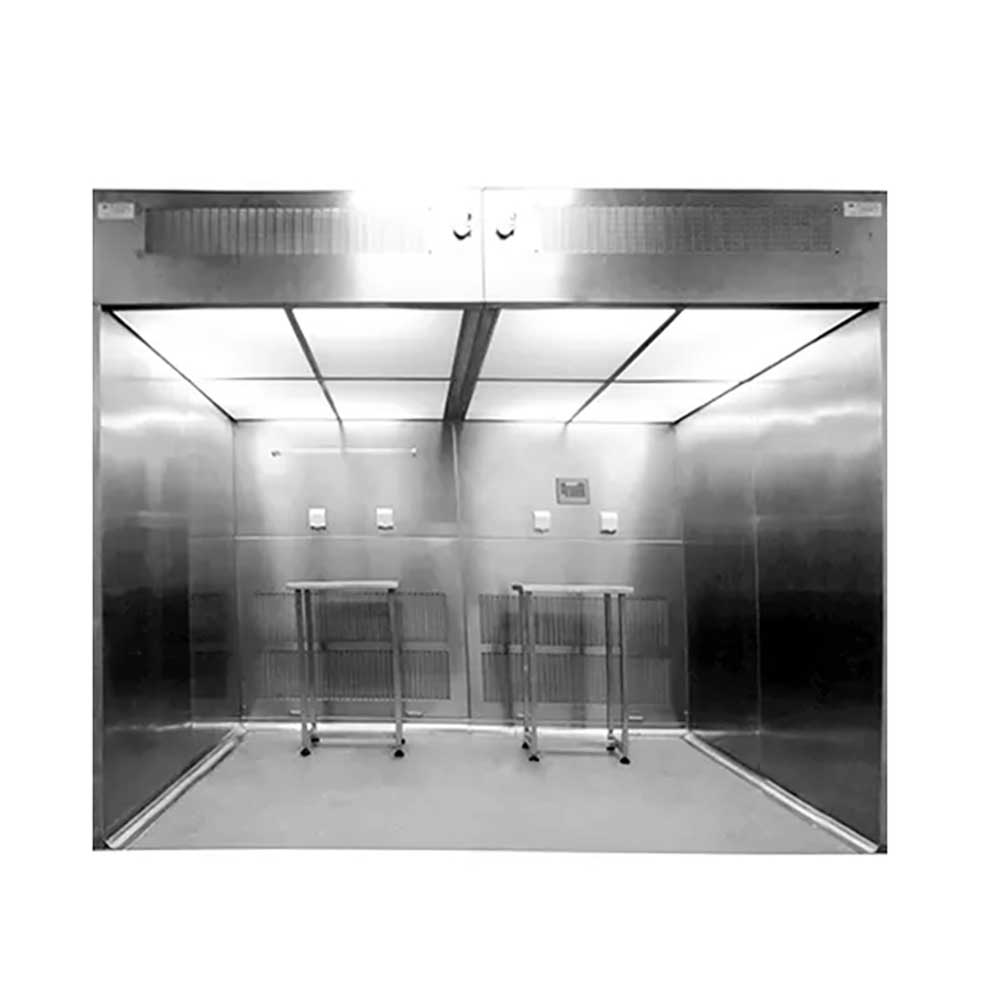

During the weighing and packaging of dust and reagents, a negative pressure weighing room ensures controlled containment, preventing airborne particles from escaping. This system helps protect personnel from inhaling harmful substances while eliminating cross-contamination, safeguarding both the indoor environment and external surroundings.
Structural Composition
The negative pressure weighing room consists of several integrated components, including:
- Working area
- Return air box
- Fan box
- Air outlet box
- Outer enclosure
- Filtration system: Initial effect filter, medium effect filter, and high-efficiency filter
- Variable air volume air unit
- PLC control system and sensing system
Performance Characteristics
| Feature | Details |
|---|---|
| GMP Compliance | Designed, manufactured, and assembled to meet GMP pharmaceutical production standards. |
| Material | Constructed entirely from stainless steel, ensuring durability, flatness, and ease of cleaning. |
| Electrical Cabinet | Available in internal or external configurations based on user preferences. |
| Compact Structure | Offers flexibility in placement and cost-efficient operation. |
| Advanced Air System | Ensures personnel safety, prevents contamination, and maintains product integrity. |
| Noise Reduction | Specially designed air ducts minimize operational noise levels. |
| Uniform Airflow | Wind velocity uniformity controlled within 5%-10%, ensuring precise containment. |
| Modular Design | Allows easy on-site assembly and disassembly for weighing operations. |
| Soft Connection Technology | The fan and weighing room are linked using soft connections, reducing noise and vibration. |
| Lighting & Sterilization | Adjustable illumination above 300 lux; optional UV or ozone sterilization. |
| Configurable Equipment | Supports electronic weighing scales, printers, real-time log data printing, wind speed detection, temperature & humidity sensors. |
| Particle & Bacteria Detection | Can be equipped with dust particle and planktonic bacteria detection systems. |
| Doors & Electrical Components | Options for PVC isolation doors, waterproof & dustproof industrial plugs, and differential gauges based on customer needs. |
| Precision Weighing System | PLC-integrated interface enables formula-based precision weighing. |
| Customization Options | Can be modified and configured according to specific client requirements. |
