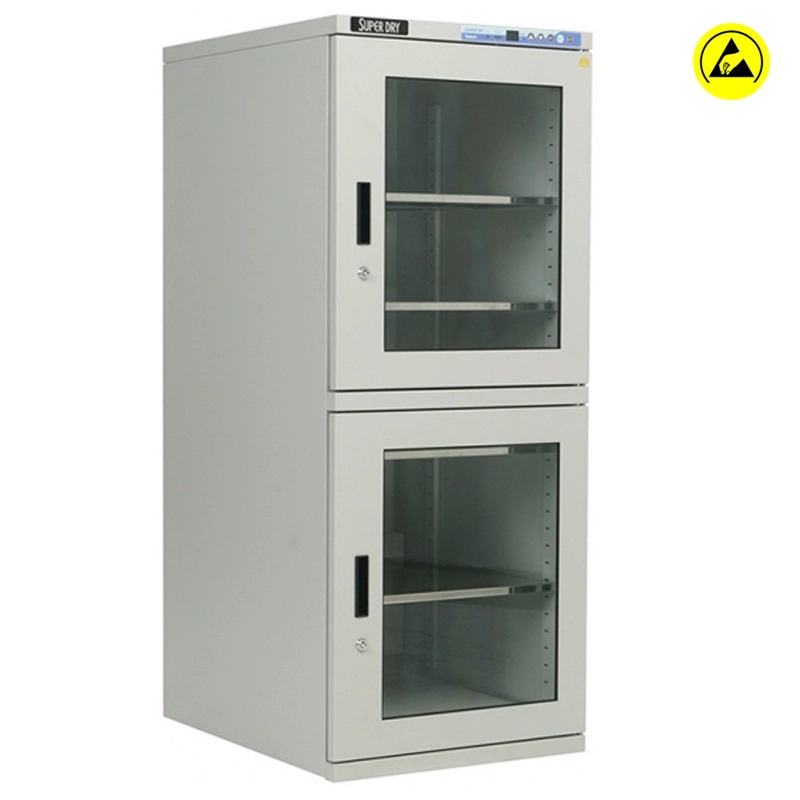

Lab use dry cabinet HSD-302-01 (1%RH, 340L)

Lab use dry cabinet HSD-302-01 (1%RH, 340L)

SMT production line dry cabinet HSD-502-01 (1%RH, 510L) is equipped with 2 powerful patented dry units to reach ultra-low humidity min

Add to quote
SKU HSD-302-01 Category

Superior Recovery after Frequent Door Openings

Lab use dry cabinet HSD-302-01 (1%RH, 340L) is equipped with 2 powerful patented dry units to reach ultra-low humidity min. 1%RH which meets IPC/JEDEC J-STD-033D demands, and provide the most effective solution to:

  1. Micro-cracks in Intergrated Circuits like QFP and BGA
  2. Delaminations in Printed Circuit Boards and Rework Devices
  3. Defects caused by Heating in lead-free SMD devices

Specification

  • Humidity Range: 1%RH
  • Sensor precision: ±2%RH, +/-1°C
  • External dimensions: (W x H x D)500 x 1230x 640 mm
  • Internal dimensions: (W x H x D) 490 x 1160 x590 mm
  • Weight: 67 kg
  • Volume: 340 L
  • Shelves (W x D): 7 pcs, adjustable, ESD safe steel
  • Max weight on shelf: 50 kg
  • Structure: 1.2mm Steel, ESD safe
  • Cabinet color: Gray
  • Door: 2 pcs, with handles, airtight magnetic sealers.
  • ESD grounding wire: 1M Ω
  • Voltage: 220 V AC (110 V AC optional)
  • Power consumption: Ave. 58 W/h
  • Humidity/Door open alarm buzzer
  • Wrist strap connection

Options

  • Humidity alarm light:
    Alarm light flashes and sounds when its internal humidity exceeds set value
  • Extra shelf:
    Greatly increase the usable space inside Super Dry
  • Nitrogen auto purge system (Model AN2-03):
    Effective usage of N2 combined with Super Dry, help to accelerate the recovery time and oxidation prevention. Set on digital control panel.
  • Independent Nitrogen purge system (Model TN2-02):
    Effective usage of N2 combined with Super Dry, help to accelerate the recovery time and oxidation prevention. Set the buttons on N2 purge system itself
  • Nitrogen valve (Model: HN2-01):
    Simple N2 flow meter, 0-25L/min adjustable
  • SMD single rack (stainless steel):
    Suitable for storage of components on tape and reel, can pull out on rail
  • SMD double rack (stainless steel):
    Suitable for storage of components on tape and reel, can pull out on rail
  • Adjustable legs:
    Available for effective stabilization
  • Castors (4pcs):
    To move the cabinet on floor easily
  • Data logger with software (model 174H):
    Data logging humidity and temperature, can read and output data by software with a PC
  • Network system for humidity and temperature (including module and software):
    Far distance humidity and temperature monitoring
