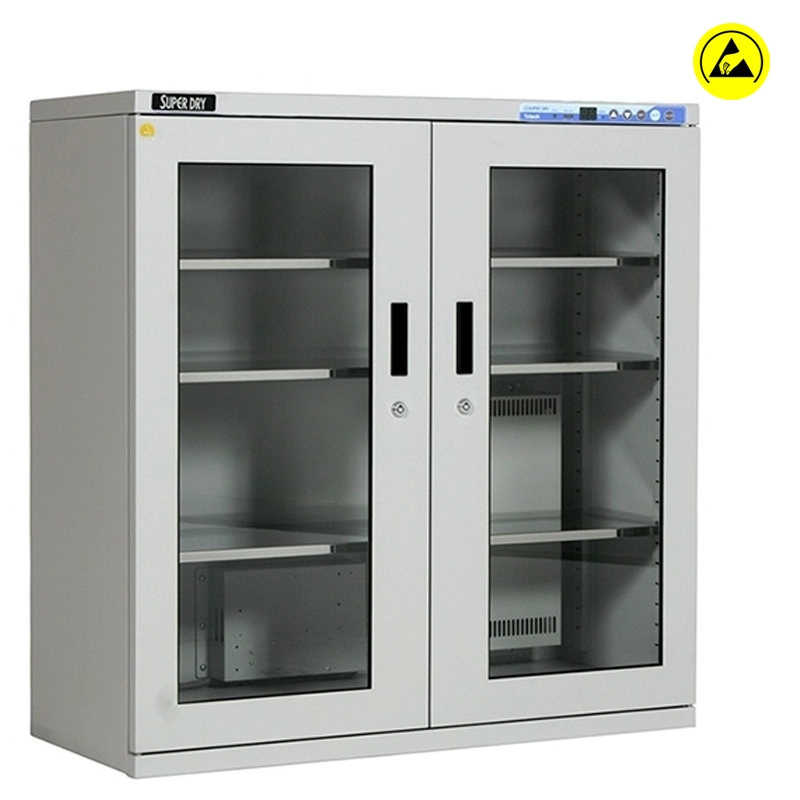

LED storage dry cabinet HSD-252-01 (1%RH, 252L)

LED storage dry cabinet HSD-252-01 (1%RH, 252L) has an outstanding performance for drying moisture sensitive components and PCBs as a result of a high performance drying unit.

Add to quote
SKU HSD-252-01 Category

LED storage dry cabinet HSD-252-01 (1%RH, 252L) has an outstanding performance for drying moisture sensitive components and PCBs as a result of a high performance drying unit.

Humidity can be controlled precisely by digital panel to reach the lowest 1%RH.

It is specially designed for moisture sensitive SMD packages to comply with IPC/JEDEC J-STD-033D.

Two powerful original Japan made dry units installed, making it very suitable for operation with frequent approach.

Applications

Super Dry maintains preset internal humidity levels from 1~50% RH and is ideal for moisture proof and anti oxidation storage applications, offering protection from corrosion, mold and deterioration for such items as:

  • All kinds of Integrated Circuits (IC), like Monolithic, BGA, QFP; PLCC, Bipolar etc.
  • Silicon Wafers.
  • aerospace related Instruments and Tools.
  • Optical Equipment and Machine Tools.
  • Watches.

Features and benefits

  • Modular design:
    Totech Super Dry is modularly designed dry cabinet. The main modules include dry units, control box, sensor, shelves, castors, humidity&temperature monitoring module. All of the modules can be replaced easily. Totech dry cabinet can be used as long as the cabinet structure is in good condition. Most of our customers can use the Totech dry cabinets for more than 10 years without any problem.
  • Dry units:
    1%RH
  • ESD safe design:
    Cabinet is with ESD metal painted steel body, ESD safe steel shelves and ground wire, well comply with IEC 61340-5-1.
  • Convenient Operation:
    Totech Super Dry cabinet is with digital control panel, can control the humidity precisely from 1% to 50%RH, by adjusting ±0.1%RH. Humidity, temperature and alarm functions are shown and can be adjusted by digital control panel. Key Lock function on the digital control panel prevents unintended changes of setting. Sensor calibration function is also available with digital panel.
  • Maintenance free design:
    Totech dry cabinet works by dry units. An interlocked fan causes the air to circulate through the dry unit, while passing through the dry unit moisture in the air is absorbed by the zeolite desiccant. During periodic regenerating of the zeolite desiccant by heating, the absorbed humidity is evaporated and exhausted through the external shutters of the dry unit. The process is physical, and no extra maintenance at all.
  • Lockable doors:
    Every door can be locked separately with a key
  • Alarm setting:
    Humidity/door open alarm buzzer and humidity alarm light tower.

Specification

  • Humidity Range: 1%RH
  • Sensor precision: ±2%RH, +/-1°C
  • External dimensions: (W x H x D) 880 x 900 x 380 mm
  • Internal dimensions: (W x H x D) 870 x 830 x 330 mm
  • Weight: 46 kg
  • Volume: 252 L
  • Shelves (W x D): 3 pcs, ESD safe steel
  • Max weight on shelf: 50 kg
  • Structure: 1.2mm steel, ESD safe
  • Cabinet color: Gray
  • Door: 2 pcs, with handles, airtight magnetic sealers.
  • ESD grounding wire: 1M Ω
  • Voltage: 220 V AC (110 V AC optional)
  • Power consumption: Ave. 56 W/h
  • Humidity /Door open alarm buzzer
  • Wrist strap connection

Options

  • Humidity alarm light:
    Alarm light flashes and sounds when its internal humidity exceeds set value
  • Extra shelf:
    Greatly increase the usable space inside Super Dry
  • Nitrogen auto purge system (Model AN2-03):
    Effective usage of N2 combined with Super Dry, help to accelerate the recovery time and oxidation prevention. Set on digital control panel.
  • Independent Nitrogen purge system (Model TN2-02):
    Effective usage of N2 combined with Super Dry, help to accelerate the recovery time and oxidation prevention. Set the buttons on N2 purge system itself
  • Nitrogen valve (Model: HN2-01):
    Simple N2 flow meter, 0-25L/min adjustable
  • SMD single rack (stainless steel):
    Suitable for storage of components on tape and reel, can pull out on rail
  • Wrist strap connection:
    Allows grounding while handling ESD sensitive materials
  • Adjustable legs:
    Available for effective stabilization
  • Castors (4pcs):
    To move the cabinet on floor easily
  • Data logger with software (model 174H):
    Data logging humidity and temperature, can read and output data by software with a PC
