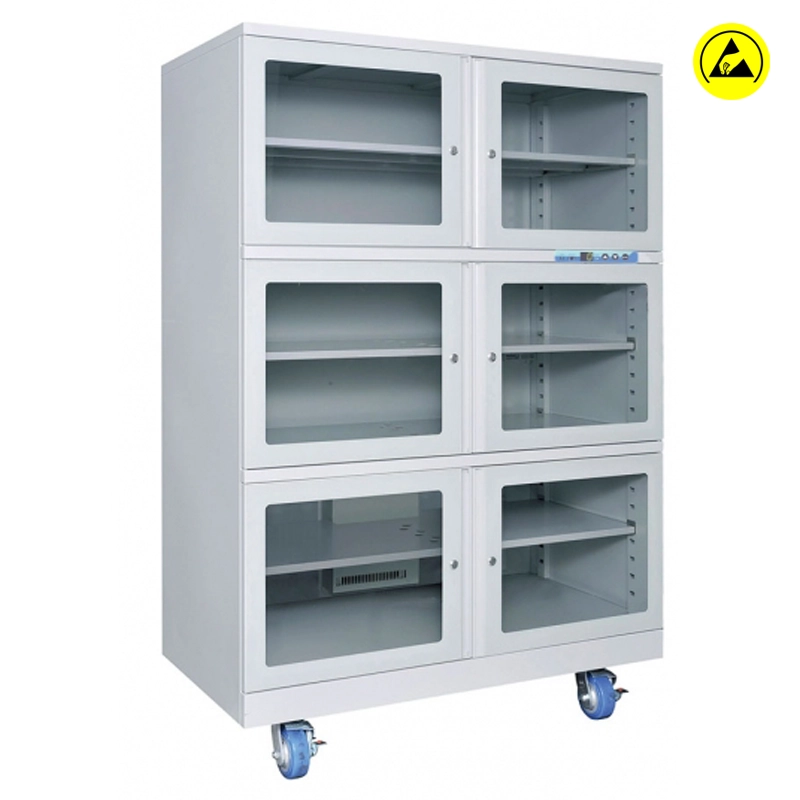

Dry cabinet CSD-1406-03

Dry cabinet CSD-1406-03 is engineered for medium to long-term constant low humidity storage. The circulation of air in the cabinet is regulated by an internal fan. All surfaces are ESD coated in conformity with current ESD 61340-5-1 standard.

Add to quote
SKU CSD-1406-03 Category

Dry cabinet CSD-1406-03 is engineered for medium to long-term constant low humidity storage. The circulation of air in the cabinet is regulated by an internal fan. All surfaces are ESD coated in conformity with current ESD 61340-5-1 standard.

It is ideal for the moisture-proof and anti-oxidation storage of wide-ranging technologies and conforms with IPC/JEDEC J- STD 033C.

Specification

  • Humidity Range: 1%~50%RH adjustable by digital panel
  • Sensor accuracy: ±3%RH
  • External dimensions: (W x H x D) 1200 x 1900 x 750 mm
  • Internal dimensions: (W x H x D) 1190 x 1700 x 720 mm
  • Weight: 175 kg
  • Capacity: 1450 L
  • Shelves (W x D): 5 pcs, adjustable (ESD painted steel)
  • Max weight on shelf: 100 kg
  • Structure: 1.2mm Steel, ESD safe painted
  • Cabinet color: Gray
  • Door: 6 pcs, with handles, airtight magnetic sealers
  • ESD grounding wire: 1M Ω
  • Voltage: 220 V AC (110 V AC optional)
  • Power consumption: Ave. 58.9W/h
  • Castors: 4pcs, 2 of them with brakes

Options

  • Extra shelf:
    Greatly increase the usable space inside Super Dry
  • Independent Nitrogen purge system (Model TN2-02):
    Effective usage of N2 combined with Super Dry, help to accelerate the recovery time and oxidation prevention. Set the buttons on N2 purge system itself
  • Nitrogen valve (Model: HN2-01):
    Simple N2 flow meter, 0-25L/min adjustable
  • SMD single rack (stainless steel):
    Suitable for storage of components on tape and reel, can pull out on rail
  • SMD double rack (stainless steel):
    Suitable for storage of components on tape and reel, can pull out on rail
  • Adjustable legs:
    Available for effective stabilization
  • Data logger with software (model MR6662):
    Data logging humidity and temperature, can read and output data by software with a PC
  • Humidity and door open alarm buzzer
  • Humidity alarm light tower

Applications

Dry cabinet CSD-1406-03 maintains preset internal humidity levels from 1~50%RH and is ideal for moisture-proof and anti-oxidation storage applications, offering protection from corrosion, mold and deterioration for such items as:

  • All kinds of Integrated Circuits (IC), like Monolithic, BGA, QFP; PLCC, Bipolar etc.
  • Silicon Wafers.
  • Aerospace related Instruments and Tools.
  • Optical Equipment and Machine Tools.
  • Watches.
  • PDP Inspection Equipment, Liquid Crystal Cleaning Equipment, LCD’s, TAC’s etc.
  • LED’s and LD’s
