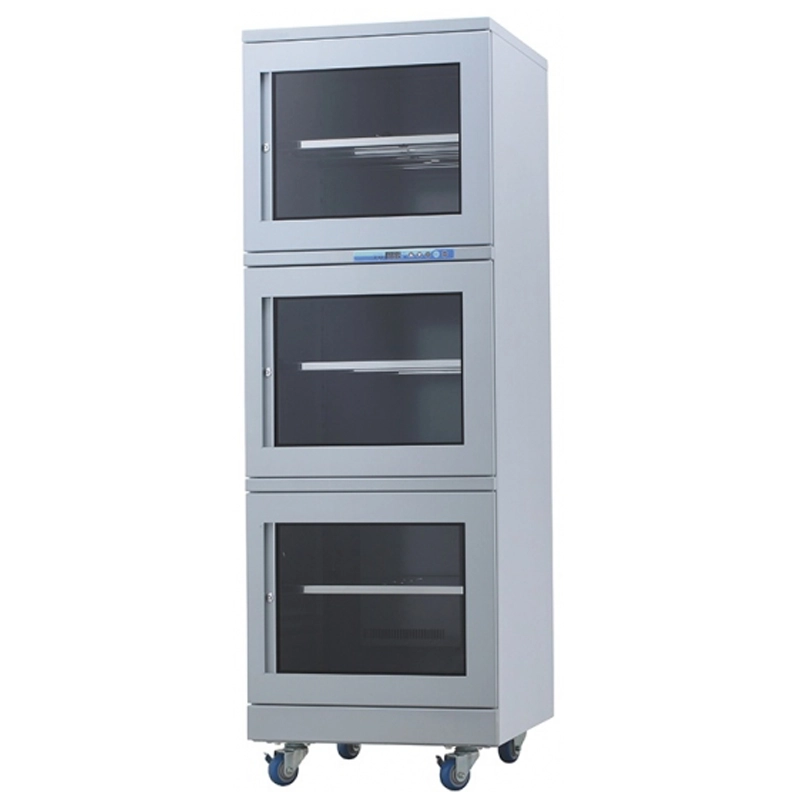

Super Dry cabinet FSD-680-01 (0.5%RH, 580L)

Super Dry cabinet FSD-680-01 (0.5%RH, 580L)

Super Dry cabinet FSD-680-01 (0.5%RH, 580L) mostly recommed for SMT production Line!

Add to quote
SKU FSD-680-01 Category

Super Dry cabinet FSD-680-01 (0.5%RH, 580L) mostly recommed for SMT production Line!

Ultra low humidity, Super fast dehumidification.

  1. Newly developed super fast dehumidifying.
  2. Keep constant <0.5%RH, recovery to 5%RH within 5 mins.
  3. Installed Japnese patent dry units.
  4. Low power comsumption.

Features and benefits

  • Installed Switzerland made SENSIRION sensor, with display range 0~99%RH.
  • To read humidity&temperature value, set humidity alarm and calibrate sensor on digital panel.
  • Cabinet body is made of 1.2mm SPCC, with trengthened structure and excellent air tightness.
  • 360°rotary castors with brakes, ESD safe castors optional.
  • Shelf is with loading capacity 100kg, with height adjustable.
  • The door is with 4mm windows.
  • Cabinet surface resistance 106~109 Ω, cabinet is with 1MΩ grounding wire, compling to IEC61340-5-1.
  • The storage efficacy satisfies and exceeds the IPC/JEDECJ-STD-033D standard

Specification

  • FSD Series: <0.5%RH ultra low humidity, super fast dehumidification
  • External Size: W600*D670*H1785mm
  • Internal Size: W555*D490*H1545mm
  • Min. Humidity: 1%RH
  • Humidity Accuracy: ±2%RH
  • Surface Resistivity: 106~109 Ω
  • Volume（L）: 580L
  • Power Consumption: 103.4W/hr
  • Shelves (Adjustable) : 5PCS
  • Weight（kg） : 132Kgs
  • Max. Weight On Shelf(Kg): 100Kgs
  • Color : Gray
