Breathe easily while working with the Weller Zero Smog Guard, the quietest filtration unit on the market. This superior unit keeps your workspace clean, quiet and refreshed. Its compact design fits conveniently under the operator’s bench, ensuring it doesn’t take up valuable space. The Weller Zero Smog Guard prioritizes your health allowing you to focus on your tasks without worrying about air quality. Enhance your work environment and protect your well-being with this efficient and reliable fume extraction solution. Let Weller Zero Smog Guard help you maintain a healthier, more comfortable workspace all day long.
Features and Benefits
- Clean & Healthy Air
Provides superior air quality through high-efficiency filtration of soldering particles and gases with a large filtering surface (H13 HEPA particle filter, activated carbon). - Superior Experience
Lowest noise level on the market ensures a healthy, pleasant, and comfortable working environment. - Quick and Easy Filter Change
Ensures user convenience with fast, hassle-free replacements of both, prefilter and main filter. - Compact Design
Saves space with a compact, under-the-bench design ideal for single-user use. - Powerful Extraction
The robust blower maintains sufficient suction pressure throughout the filter’s life, ensuring a high flow rate to capture all smoke effectively. - Powerful Extraction
The robust blower maintains sufficient suction pressure throughout the filter’s life, ensuring a high flow rate to capture all smoke effectively. - Single User Entry Level Filtration Unit
74 W, 230 V
Highest level filtration – for cleaner and healthier air
High efficiency particle and gas filtration
Odour removal during soldering
Powerful blower maintains suction pressure throughout the filter’s life
High flow rate to collect all the smoke
Quiet – lowest noise level on the market – less than 50dB
Easy main and pre-filter change
Low maintainance
Easy-to-reach on/off switch
ESD safe

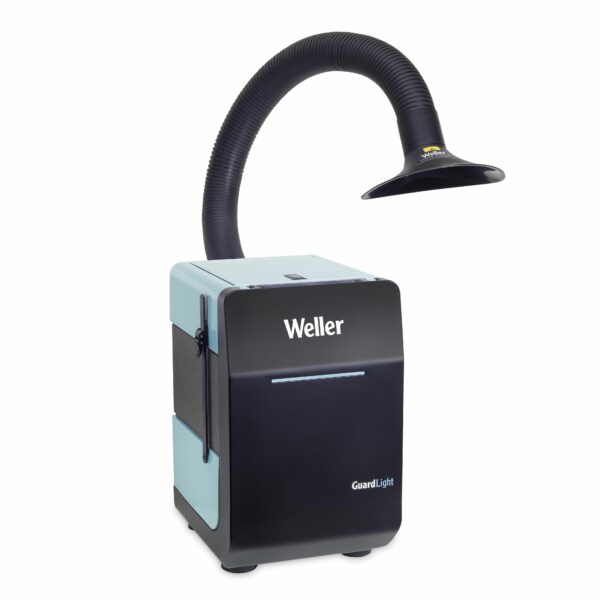

Retains Weller Easy-Click 60 Hose system - ZeroSmog Unit Guard Light, 230 V

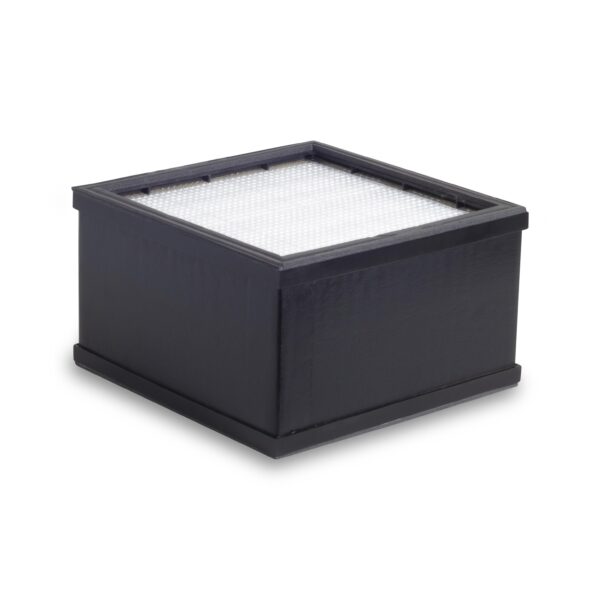

1 x main filter (HEPA H13 and Activated Carbon)

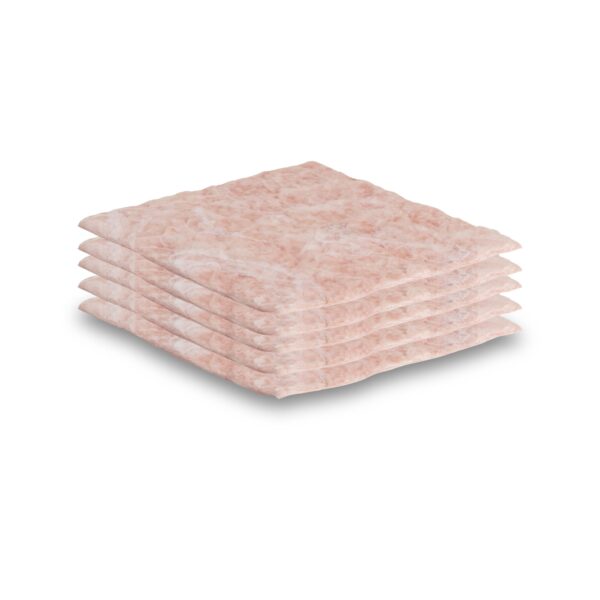

5 x ePM1-75% prefilters
Technical Data
Dimensions L x W x H | 270 x 336 x 435 mm 10.63 x 13.23 x 17.13 in |
ESD Safe | Yes |
Maximum Capacity | 100 (m³/h) |
Maximum Vacuum | 2700 Pa/V |
Noise level (distance 1 m) dB(A) | <gt/>70 dBA |
Power | 74 W (220-240 V~) |
UPC | 037103378811 |
Voltage | (220-240 V~) 50/60 Hz |
Weight (Catalog) | 9.5 kg |
