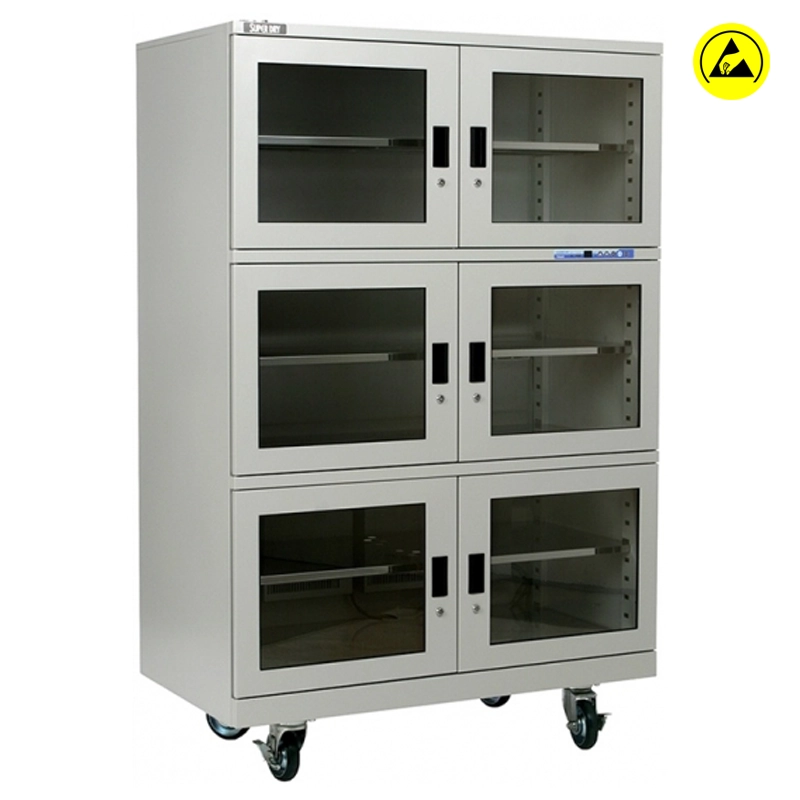

PCB storage dry cabinet HSD-1106-01 (1%RH, 1160L)

PCB storage dry cabinet HSD-1106-01 (1%RH, 1160L) is an auto-electronic dehumidifying cabinet which provides digital humidity control between 1-50% RH. It is perfect for ultra-low humidity storage, as well as ESD protection for various factory uses.

Add to quote
SKU HSD-1106-01 Category

PCB storage dry cabinet HSD-1106-01 (1%RH, 1160L) is an auto-electronic dehumidifying cabinet which provides digital humidity control between 1-50% RH. It is perfect for ultra-low humidity storage, as well as ESD protection for various factory uses.

PCB storage dry cabinet HSD-1106-01 (1%RH, 1160L) is equipped with 2 effective dryunits, which can reach the lowest 1%RH. It can completely meet the requirementof IPC(J-STD-033D) and it is suitable for fast dehumidification for conditionswith more door open-close frequency.

Applications

  • Storage of all kinds of Integrated Circuits and Silicon Wafers etc
  • Storage of PDP Inspection Equipments and Liquid Crystal Cleaning Equipments etc
  • Storage of Aerospace related Instruments and Tools
  • Storage of Optional Equipments and Digital Media
  • Storage of Cultural Assets

Features and benefits

  • Advanced ultra-low humidity technology, low energy consumption.
  • Meets IPC/JEDEC J-STD-033D
  • Effective dehumidificatin to make sure a short recovery time after door open and close.
  • Digital control panel for easy operation.
  • ESD safe design

Specification

  • Humidity Range: 1%RH
  • Sensor precision: ±2%RH, +/-1°C
  • External dimensions: (W x H x D) 1200 x 1840 x 580 mm
  • Internal dimensions: (W x H x D) 1190 x 1560 x 630 mm
  • Weight: 167 kg
  • Volume: 1160 L
  • Shelves (W x D): 5 pcs, 1157 x 490 mm, adjustable (ESD safe steel)
  • Max weight on shelf: 100 kg
  • Structure: 1.2mm Steel, ESD safe
  • Cabinet color: Gray
  • Door: 6 pcs, with handles, airtight magnetic sealers.
  • ESD grounding wire: 1M Ω
  • Voltage: 220 V AC (110 V AC optional)
  • Power consumption: Ave. 56 W/h
  • Castors: 4pcs, 2 of them with brakes
  • Humidity/Door open alarm buzzer
  • Wrist strap connection

Options

  • Humidity alarm light:
    Alarm light flashes and sounds when its internal humidity exceeds set value
  • Extra shelf:
    Greatly increase the usable space inside Super Dry
  • Nitrogen auto purge system (Model AN2-03):
    Effective usage of N2 combined with Super Dry, help to accelerate the recovery time and oxidation prevention. Set on digital control panel.
  • Independent Nitrogen purge system (Model TN2-02):
    Effective usage of N2 combined with Super Dry, help to accelerate the recovery time and oxidation prevention. Set the buttons on N2 purge system itself
  • Nitrogen valve (Model: HN2-01):
    Simple N2 flow meter, 0-25L/min adjustable
  • SMD single rack (stainless steel):
    Suitable for storage of components on tape and reel, can pull out on rail
  • SMD double rack (stainless steel):
    Suitable for storage of components on tape and reel, can pull out on rail
  • Adjustable legs:
    Available for effective stabilization
  • Data logger with software (model 174H):
    Data logging humidity and temperature, can read and output data by software with a PC
