Strong Pick & Place
Introducing – The Puma – State of the art technology. Expandable in any direction. Same as in nature our Puma is common modular and adaptive in all kinds of environment . With different modules the systems grow synchronously with the customer’s requirements for performance and processes. Puma is world`s best highspeed Pick-and-Place solution which can also be used in ultraflexible, rapid prototyping development.

Add to quote

Relentless strong pick and place & dispensing

Introducing – The Puma – State of the art technology. Expandable in any direction. Same as in nature our Puma is common modular and adaptive in all kinds of environment . With different modules the systems grow synchronously with the customer’s requirements for performance and processes. Puma is world`s best highspeed Pick-and-Place solution which can also be used in ultraflexible, rapid prototyping development.

Strong Pick & Place
Strong Pick & Place
Strong Pick & Place
Strong Pick & Place
Strong Pick & Place
Strong Pick & Place
Puma4 Puma2 Puma1
Productivity Optimum placement speed 18100 cph (4-axes) 11200 cph (2-axes) 6700 cph (1-axis)
Optimum – New Puma Ultra 30000 cph (4-axes) 17600 cph (2-axes) 9200 cph (1-axis)
Solder Paste Jetting
Shockwave Jet Valve
Jet-on-the-Fly
Max Frequency: 780000 dots/h
BGA Pattern Speed: 480000 dots/h
Average board speed: 280000 dots/h
Feeder Feeder capacity 8 mm Tape 280 (160 inline) 260 (140 inline) 260 (140 inline)
Components Component size range 008004 (imp.) – 109 x 87 mm (Note specs for details)
Accuracy Placement accuracy (x, y) Chip ± 40 μm (3σ) / QFP ± 30 μm (3σ)
PCB Max. PCB dimensions 560 x 610 mm (22 x 24″) optional 1800 x 610 mm (71 x 24″)
Dimensions Machine footprint 1557 x 1357 mm (61 x 53″)

MULTITALENT SOFTWARE
AT YOUR FINGERTIPS

State of the art, full graphics, 21.5”, 16:9 HD wide touch screen, Windows 10 – 64 bit, fingertip operation,
universal CAD conversion, zoom at camera windows, all-in-one job planning, setup optimisation,
stock management, ERP/MES connection, data analysis, line management and more.

Strong Pick & Place

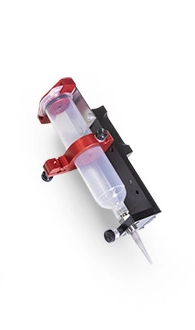

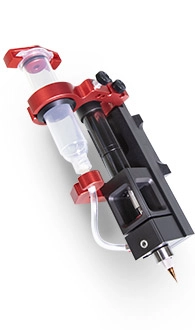

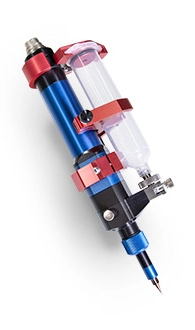

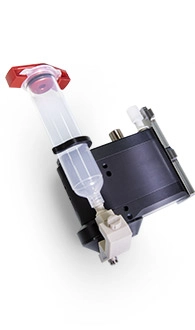

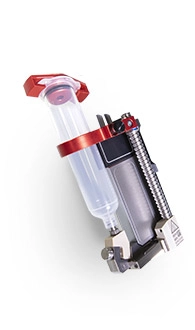

VALVES AND PUMPS

Piezo Jet Shockwave Jet Volume Screw Time-Pressure
SMD-Adhesives, Underfill, Silver Epoxy, UV-Adhesives, Globe Top, Encapsulation, Dielectric Ink Solder Paste, Liquid Metal Underfill, Gasketing, Globe Top, Dam and Fill, Solder Paste Solder Paste, SMD-Adhesive, Globe Top, Encapsulation, Silver Epoxy, Dam and Fill Gasketing, Globe Top, Encapsulation, Solder Paste, SMD-Adhesive, Silver Epoxy, Dam and Fill
Low – High Viscosity High Viscosity Low – High Viscosity High Viscosity High Viscosity
Max Frequency: 2000000 dots/h
BGA Jet-on-the-Fly: 780000 dots/h
BGA Stop & Jet: 177000 dots/h
Max Frequency: 780000 dots/h
BGA Jet-on-the-Fly: 480000 dots/h
Average Speed: 280000 dots/h
26000 dots/h (BGA Pattern*) 30000 dots/h (BGA Pattern*) 38000 dots/h (BGA Pattern*)
